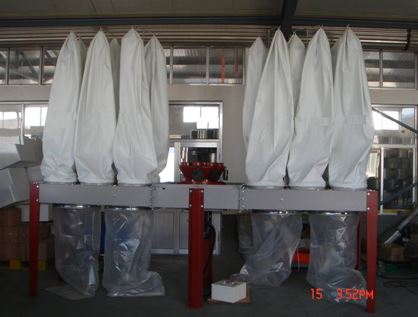

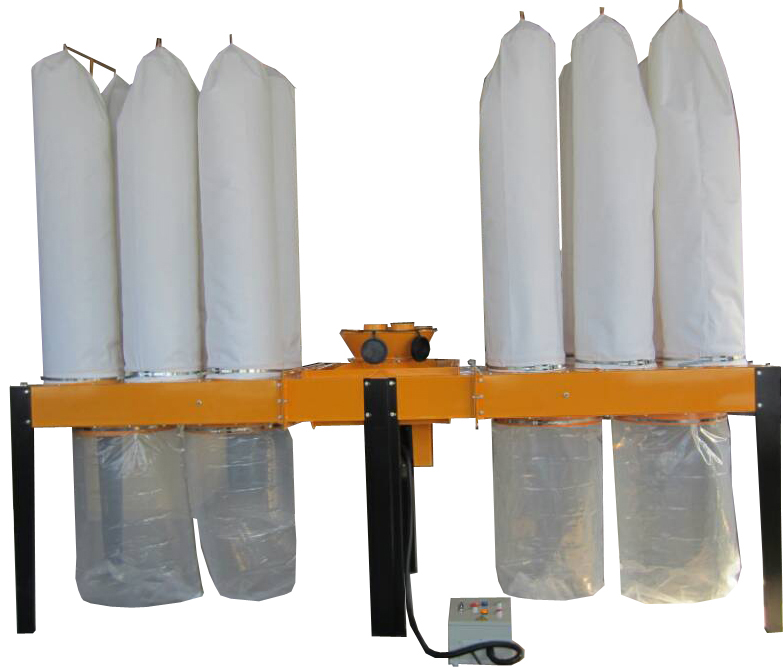

| 10 hp dust collector | Motor 400V,3~,50Hz,7500W/ 10HP |
| Fan diameter 380mm | Inlet diameter 1-380mm or 8x127mm |
| Air flow 354 cube meter/ min | Air speed through inlet 52m/sec |
| Filtering bag dimension-upper 1800(h)x400(dia) MM 12PCS | Collector bag dimension-lower 1620(h)-990(dia) MM 4PCS |
| Overall dimension/MM 3970x1052x3220 | Weight 300/355Kg |
