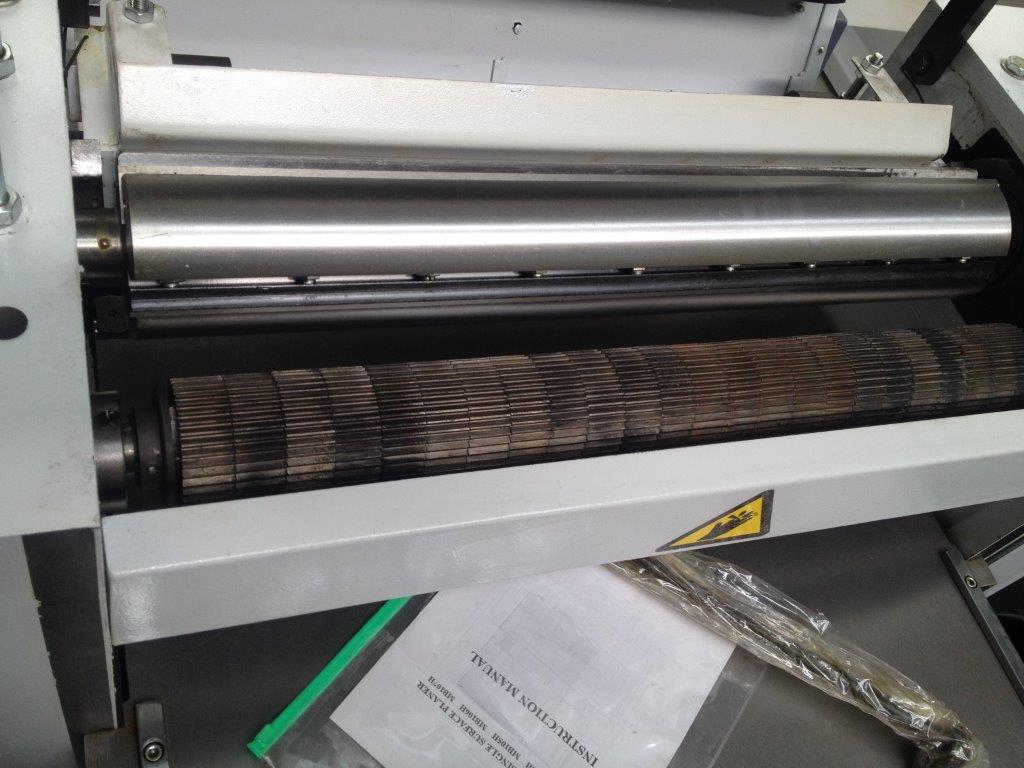

This Thicknesser is really strong and can handle a full days work! It has a 120mm cutter block with 4 disposable knives, 10HP motor,3 feed speeds,and heavy construction. The Thicknesers' first infeed roller is made of segments and this allows the operator to load different thicknesses into the machine and the first roller with lift in sections driving the different thicknesses through the machine.
Click here to download
Max planing width 630Max planing thickness 200
Min planing thickness 8Min planning length 220
Feeding speed 8, 10, 12Max planning depth 5
Spindle speed 4800Blade number 4
Spindle dia 105Motor 7.5kw
